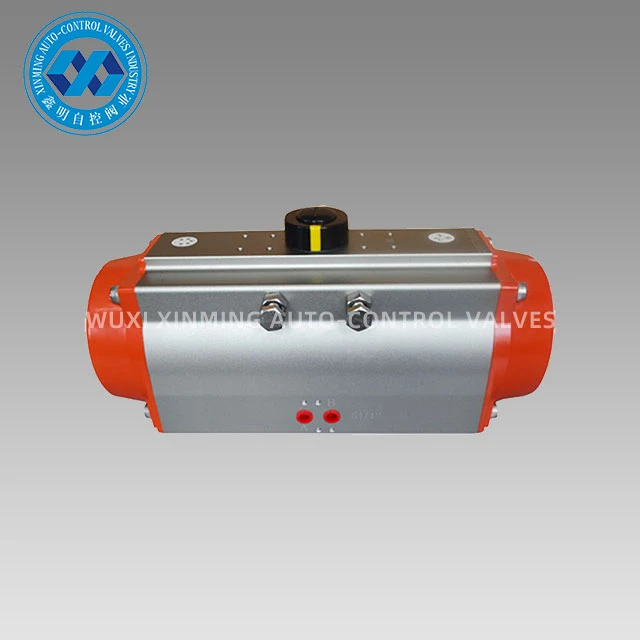

Introduzzjoni tal-Prodott
L-Attwatur Pnewmatiku Anodizzanti iebes għandu struttura kompatta -pistin-u-struttura tal-pinion b'ingranaġġ preċiż u torque tal-ħruġ stabbli; il-korp taċ-ċilindru huwa magħmul minn liga ta 'aluminju estruż, anodizzat, b'wiċċ iebes u reżistenza qawwija għall-ilbies; jista 'jiġi installat kif meħtieġ. Valv, apparat eku, positioner (indikazzjoni tal-ftuħ), triplet u mekkaniżmu ta 'tħaddim manwali. Valv tal-ballun li jqabbel, valv tal-farfett u valvi oħra ta 'stroke angolari.
Karatteristiċi tad-disinn
1. Il-korp tal-valv u l-pistun huma anodizzati iebes.
2. Sakemm il-kamin indikatur ma jkunx tal-plastik, il-viti l-oħra kollha huma SS304.
3. It-torques tal-ħruġ kbar u żgħar huma fakultattivi.
Parametru Tekniku
TABELLA TAT-TORQUE TAL-ĦRUĠ TA ' L-ATTUTUR PNEWMATIKU XM ALLUMINJU
Mudell | Pressjoni tal-arja tad-dħul (unità: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Torque tal-ħruġ tal-pressjoni tal-arja (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts U Materjal
Dijagramma tad-Dimensjoni
